Compact KP10i

Compact KP10i

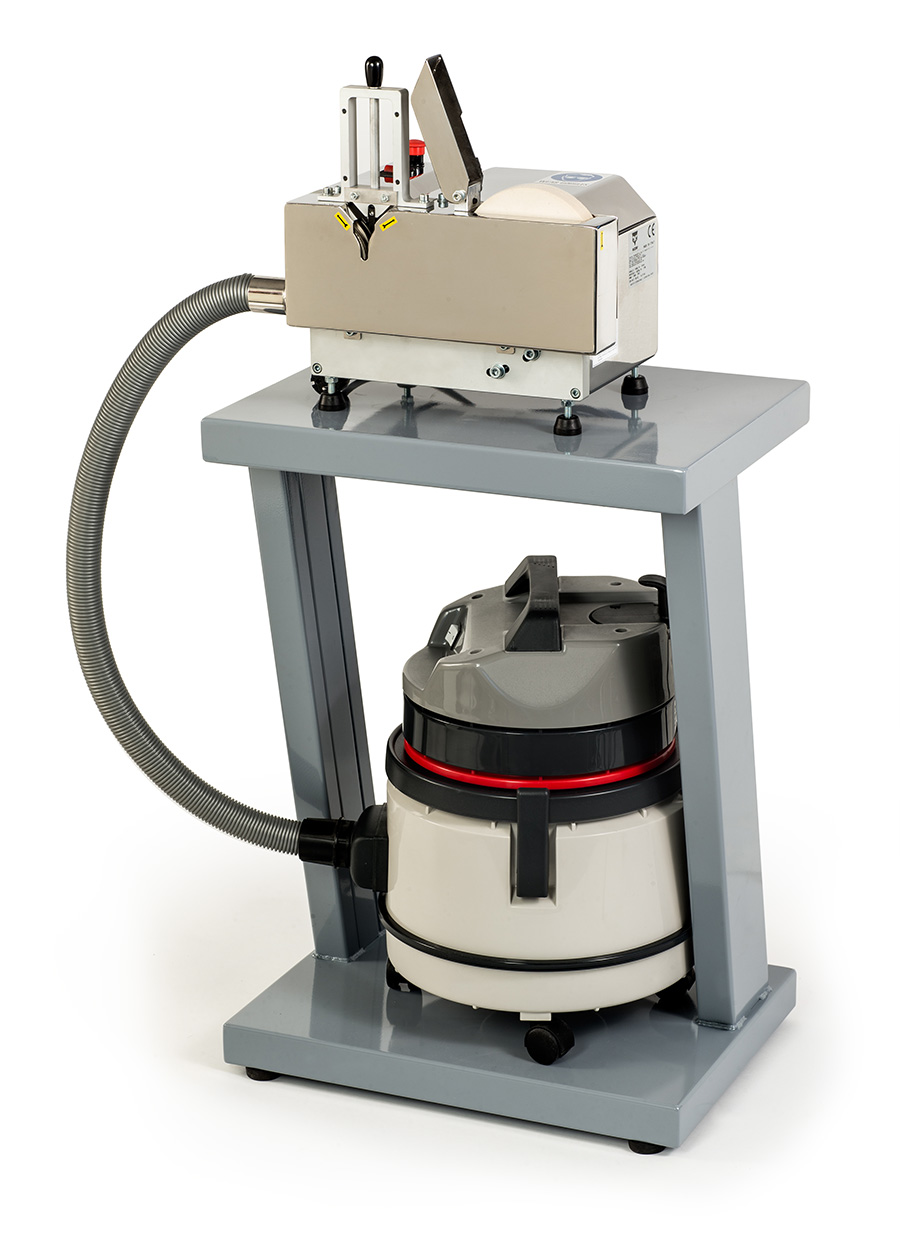

The Fazzini professional knife sharpener model Compact KP10i consists of main structure made of aluminium, a stainless steel basement containing the electrical installation and a front stainless steel structure  containing the knife sharpening wheels and a polishing wheel.

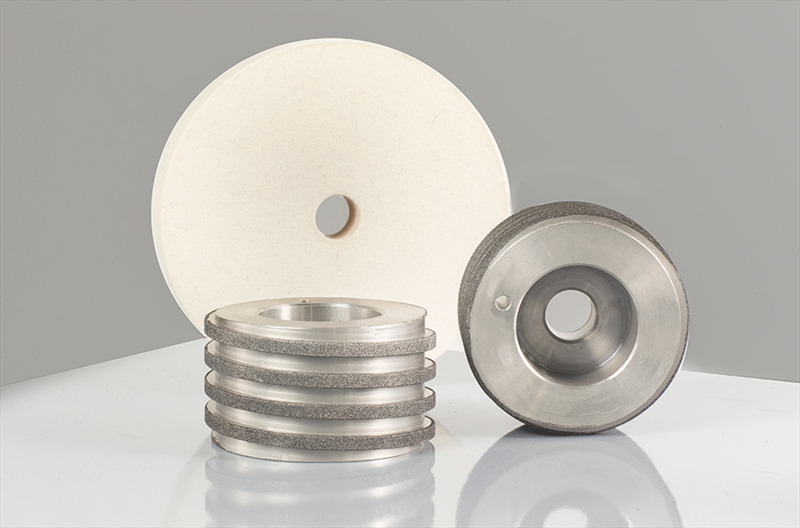

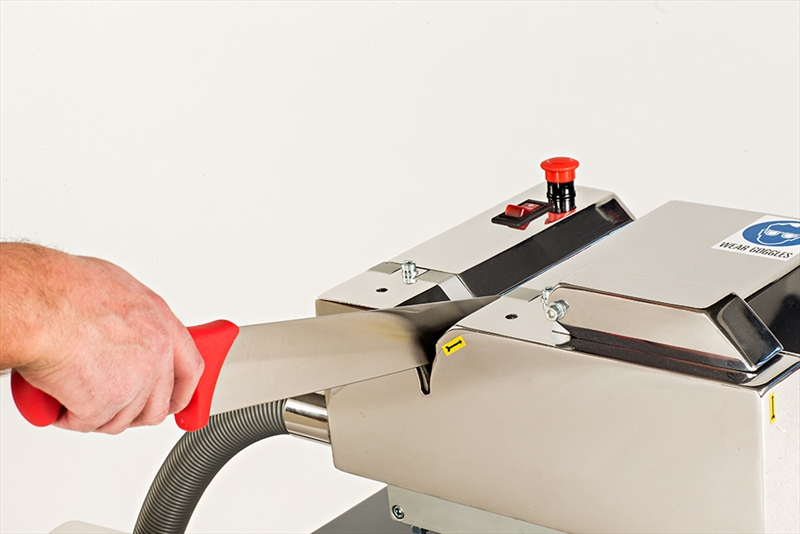

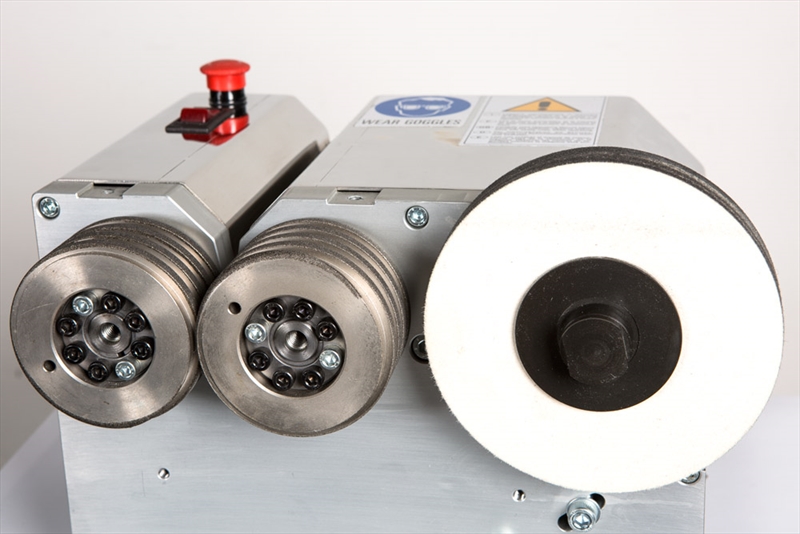

The wheels for knife sharpening are made of steel and are coated with CBN (Cubic Boron Nitride). This special coating allows dry operation without overheating problems. The knife sharpening spiral wheels are opposed, penetrate one into the other and form a constant edge angle .

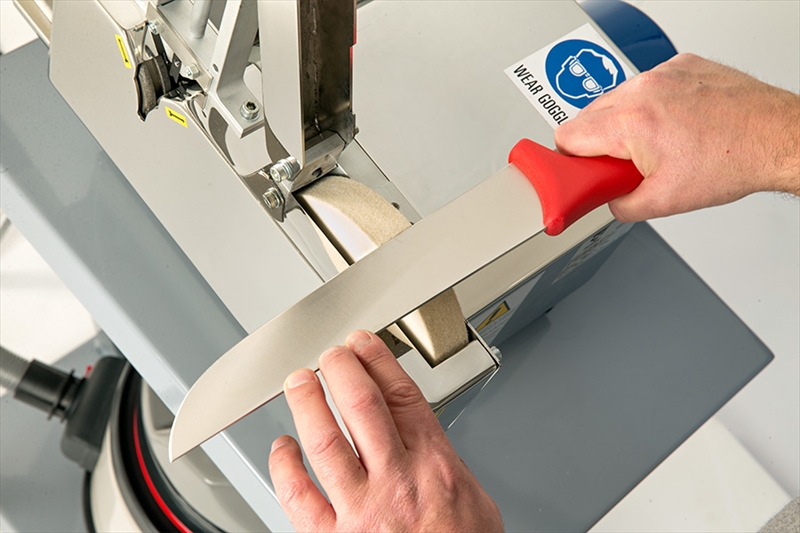

The polishing wheel is made by felt .

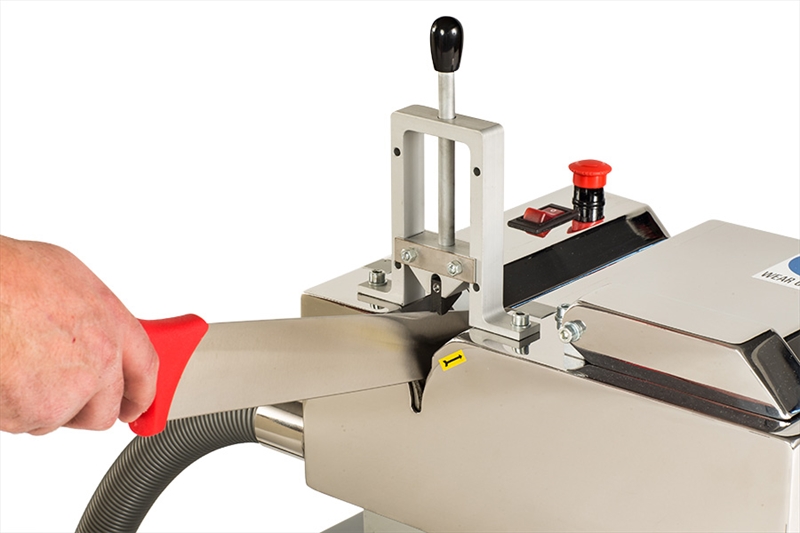

This professional knife sharpener can be provided by a system that allows to keep the blade of the knife in the right position during the sharpening operation ( Right Position System – R.P.S. ) .

Maintenance is very simple, including the wheel change when the coating is completely worn out.

The Compact KP10i sharpening machine is made for  knife sharpening . Planned for frequent use , this machine is suitable for sharpening services, big restaurants, catering, butcher’s shops, meat industry, groceries and industry .

  • Stampa
Models
Technical data Professional sharpener Compact KP10i
Knives sharpening *
Helicoidal wheels tip speed 7,88 m/s
Polishing wheel tip speed 15,22 m/s
Motor 0,37 Kw
Motor pump 1400 Giri/min.
Voltage 230 V / 50Hz
Diameter of helicoidal wheels for knives 88 mm
Width of helicoidal wheels for knives 50 mm
Knife edge angle 27°
Diameter of polishing wheel 150 mm
Width of polishing wheel 20 mm
Dimensions (W x D x H) 400 x 380 x 270 mm*
Weight 26 Kg**


* with R.P.S. : 400 mm -> 500 mm

** with R.P.S. : 26,50 Kg
